NDDS-1000

NDDS-1000

NDDS_1000_01

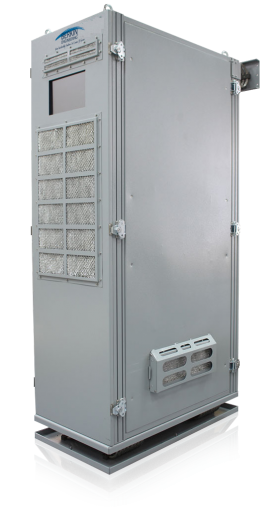

The NDDS-1000 Ship Information Distribution System (GBDS) receives navigational data, manages the data and distributes them in the formats and frequencies desired by the receiving devices. NDDS-1000 sends data with timestamp using precision time server.

The NDDS-1000 GBDS performs a number of additional functions besides collecting data from the sources connected to it. In this context;

  • Automatic or manual selection of data according to priority,
  • Some data are processed within the framework of certain algorithms and sent to the necessary places,
  • Transmitting some data in the desired speed, frequency and format by converting some data into the formats required by the units to be sent,

performs functions such as For time sensitive receivers, it also stamps the data received from the Atomic Time Server in the system.

The NDDS-1000 operates on a paired gigabit network line (copper cable or fiber) to which all sensors and receivers are connected. Thus, it provides high-speed data transfer, can be configured easily, eliminates the need to pull a new cable in case a new device is added to the ship, provides a 90% reduction in cable installation and reduces the weight of the ship.

NDDS_1000_01_r1
NDDS_1000_01_r1

Supply: 115/230 VAC 50/60 Hz, 24 VDC

Power Consumption: 600 VA

Protocol: NMEA 0183, Special Protocol (Optional), MIL-STD-1553 (Optional), ARINC 429 (Optional)

Interfaces: RS422 I/O signal ports (number can be customized) - Multi-Function Display Unit - RS232 I/O signal ports - RS485 I/O signal ports - GB LAN port - Syncro (Optional)

Dimensions: 116x67x71 cm

Weight: 130 kg ±1,0

Environmental Requirements: MIL-STD-810

EMI/EMC: MIL-STD-461

Vibration:: DOD-STD-167-1

Shock: MIL-S-901D

Boxing: MIL-STD-108

Power Supply: MIL-STD-1399 (STANDARD 1008)

  • Scalable and Modular System
  • VPX Vita46 Based System
  • Intel Xeon D Processor
  • Backup and Playback to SSD Storage
  • Real Time Operating System
  • Near Real Time Transmission (<500 μs delay)
  • Fixed Jitter Delay
  • Runtime Module Swap (Hot Swap)
  • Dual-Redundancy
  • Displaying Sensor Data and Status
  • Data Consistency
  • Automatic Safe Data Source Selection
  • Multi-Function Display Support
  • Project Independent Customizable Architecture
  • Configuration Software
